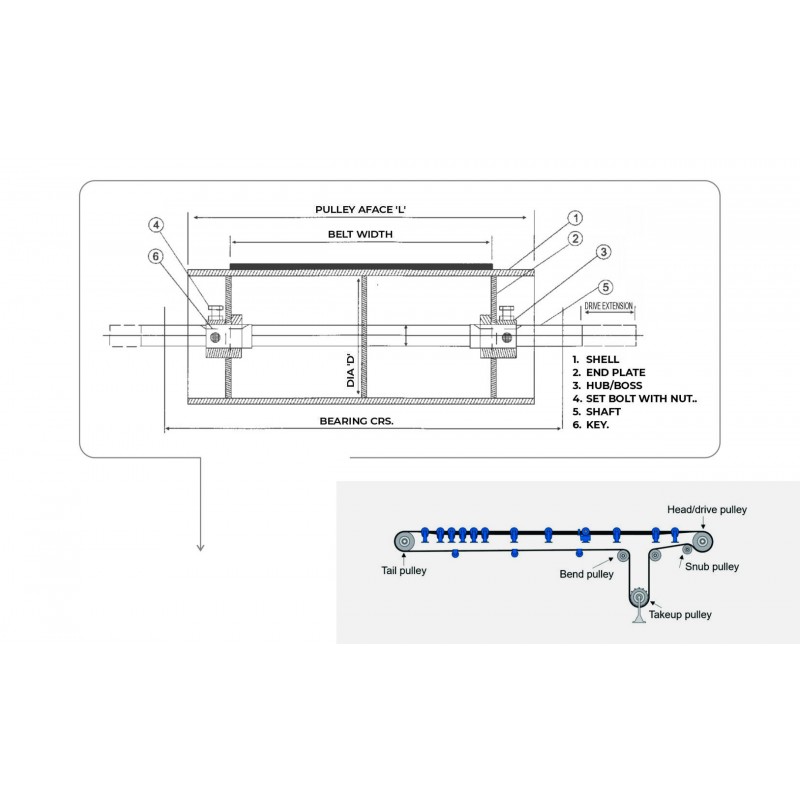

Classification Of Conveyor Pulley According To Its Location & Funcation

Drive Pulley

Pulley Connected To The Run Conveyor Belt Is Called Drive Pulleys. They Have Shaft Extensions On One/both Sides.

Take-up Pulley

Pulley, Which Can Be Moved To Keep The Belt Tight Is Called Take-up Pulley

Snub Pulley

Pulley, Which Is Provided To Increase/descreased, Warp/contact Angle Of Belt On Nearby Pulley Is Called Snub Pulley

Bend Pulley

Pulley, Which Is Used To Change The Direction Of The Belt, Is Called Bend Pulley

Deflector Pulley

Pulley Which Is Provided To Deflect The Belt Slightly(General Less Than 30) And To Make The Belt Pass Through The Requied Path, Is Called Deflector Pulley
