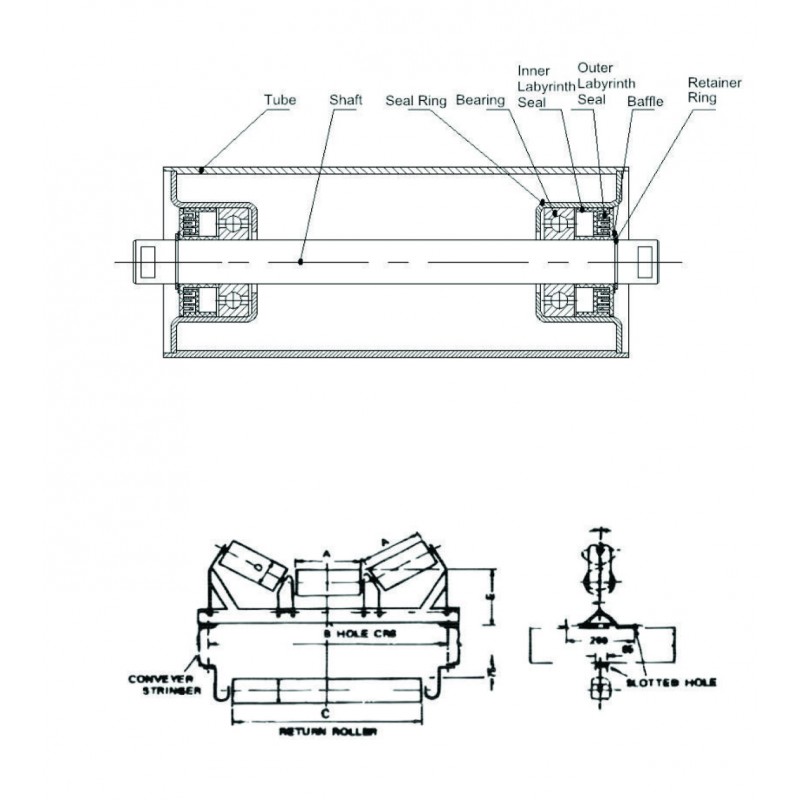

CARRYING & RETURN IDLER FOR BELT CONVEYOR DETAILS
|
Belt Width (mm) |
A Carrying Roller Length |
B Hole Crs. |
C Return Roller Length |
D Roller Dia |
E |
| 450 | 190 | 740 | 550 |
88.90 114.3 139.7 |
200 225 275 |
| 500 | 200 | 790 | 600 | ||
| 600 | 235 | 890 | 700 | ||
| 650 | 250 | 940 | 750 | ||
| 750 | 290 | 1040 | 850 | ||
| 800 | 315 | 1090 | 950 |
114.3 139.7 152.4 159 |
225 225 275 275 |
| 900 | 350 | 1190 | 1050 | ||
| 1000 | 380 | 1290 | 1150 | ||
| 1050 | 400 | 1340 | 1200 | ||
| 1200 | 465 | 1490 | 1400 | ||
| 1400 | 530 | 1690 | 1600 | ||
| 1600 | 600 | 1900 | 1800 | ||
| 1800 | 665 | 2100 | 2000 | ||
| 2000 | 730 | 2300 | 2200 |
